Welding Neck Flange Class 300 4 Inch

Posted on June 15, 2020

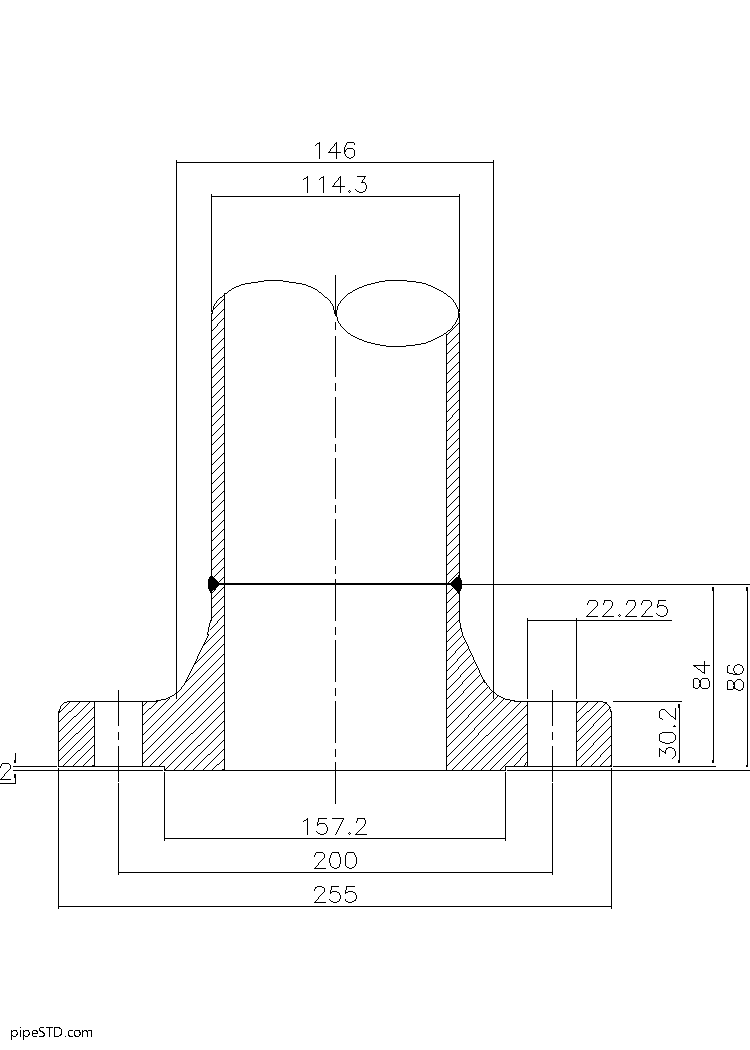

Welding Neck Flange Class 300 4 Inch

Weld Neck Flange Class 300
Size NPS : 4″
Size DN : 100 mm.
Weight : 11.4 kg.
StudBolt
Size : 3/4″ UNC Or (M20) x 115 Long
No. of Bolts : 8 EA.
Holes Diamater : 22.225 mm.

Icon

Welding Neck Flange Class 300 4 Inch

1 file(s) 146.22 KB
Download
Weld Neck Flange 100mm Weld Neck Flange 4 Inch
