Welding Neck Flange Class 300 12 Inch

Posted on June 15, 2020

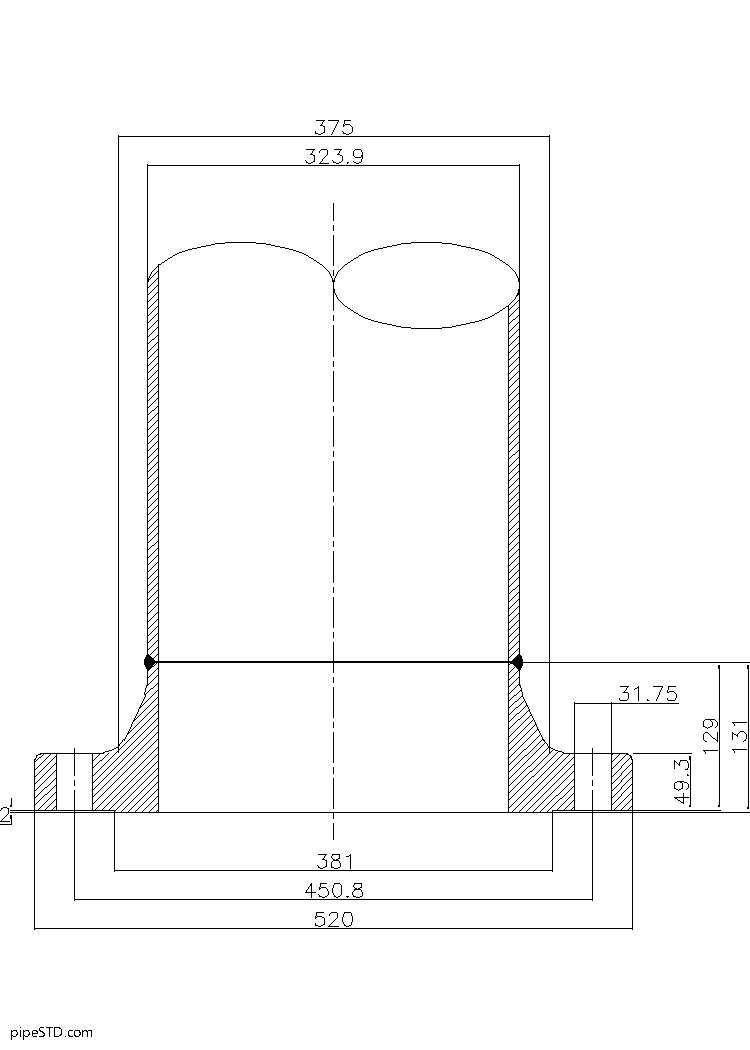

Welding Neck Flange Class 300 12 Inch
Welding Neck Flange Class 300 12 Inch

Weld Neck Flange Class 300
Size NPS : 12″
Size DN : 300 mm.
Weight : 64 kg.
StudBolt
Size : 1 1/8″ UNC Or (M30) x 170 Long
No. of Bolts : 16 EA.
Holes Diamater : 31.75 mm.

Icon

Welding Neck Flange Class 300 12 Inch

1 file(s) 151.97 KB
Download
Weld Neck Flange 12 Inch Weld Neck Flange 300mm
