Welding Neck Flange Class 150 4 Inch

Posted on June 2, 2020

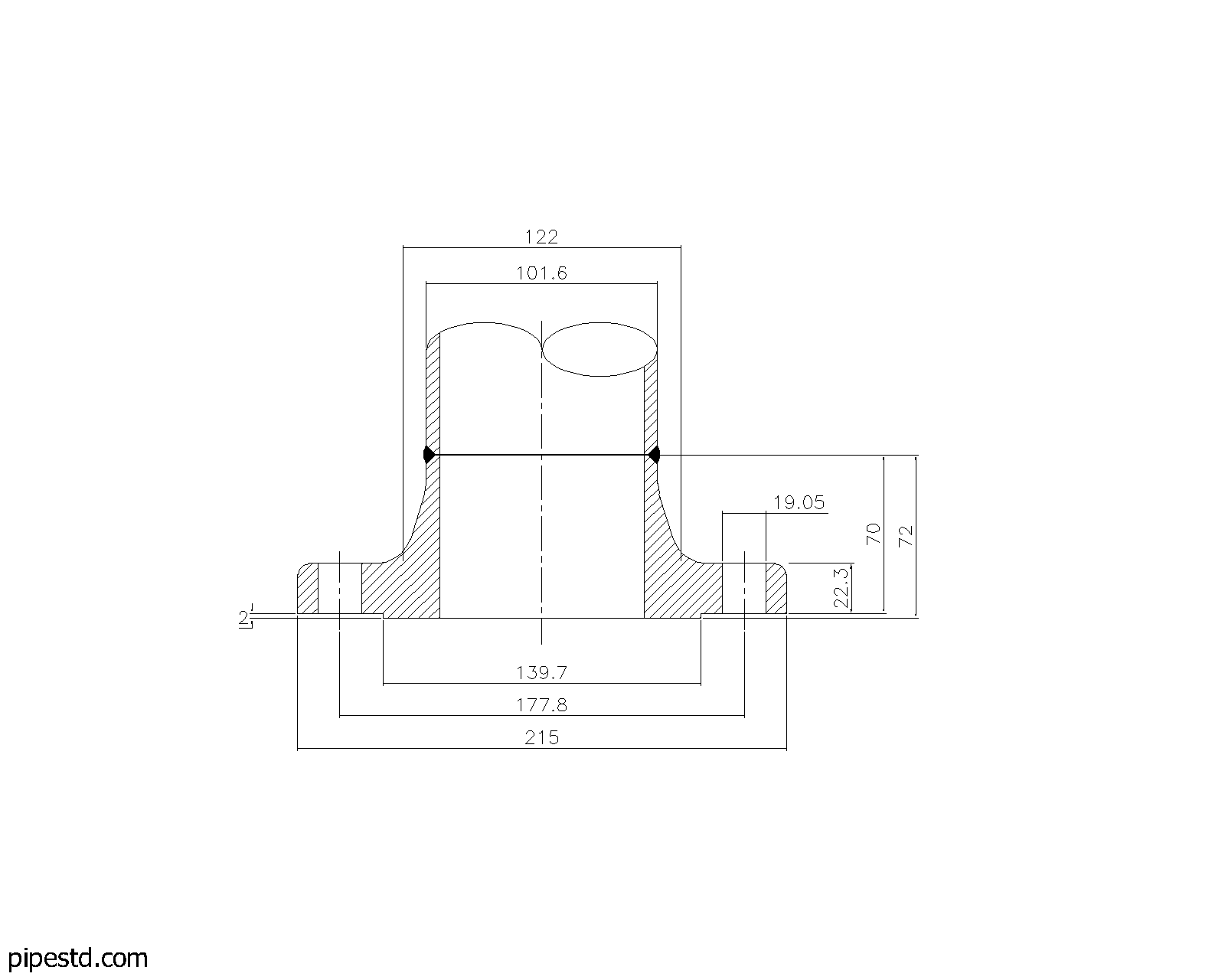

Welding Neck Flange Class 150 4 Inch
Welding Neck Flange Class 150 4 Inch

Weld Neck Flange Class 150
Size NPS : 4″
Size DN : 100 mm.
Weight : 6.8 kg.
StudBolt
Size : 5/8″ UNC Or (M16) x 90 Long
No. of Bolts : 8 EA.
Holes Diamater : 19.05 mm.

Icon

Welding Neck Flange Class 150 4 Inch

1 file(s) 138.78 KB
Download
Weld Neck Flange 100mm Weld Neck Flange 4 Inch
