Schedule XS(Extra Strong Wall) Steel Pipe Dimensions Include Nominal pipe size(nps) , Diameter nominal(dn) , Inside Dimeter(ID) , Outside Dimeter(OD) , Pipe Wall Thickness and Pipe Weight Reference ANSI/ASME B36.10(Steel Pipe) Standard with AutoCAD File

Schedule XS Pipe 48 Inch (DN1200 mm)

Schedule XS Pipe 48 Inch DN1200

Schedule XS Pipe 48 Inch (DN1200 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 48 Inch – Size : DN1200 mm – Inside Dimeter(Pipe ID) : 1193.6 mm – Outside Dimeter(Pipe OD) : 1219 mm – Pipe Wall…

Schedule XS Pipe 46 Inch (DN1150 mm)

Schedule XS Pipe 46 Inch DN1150

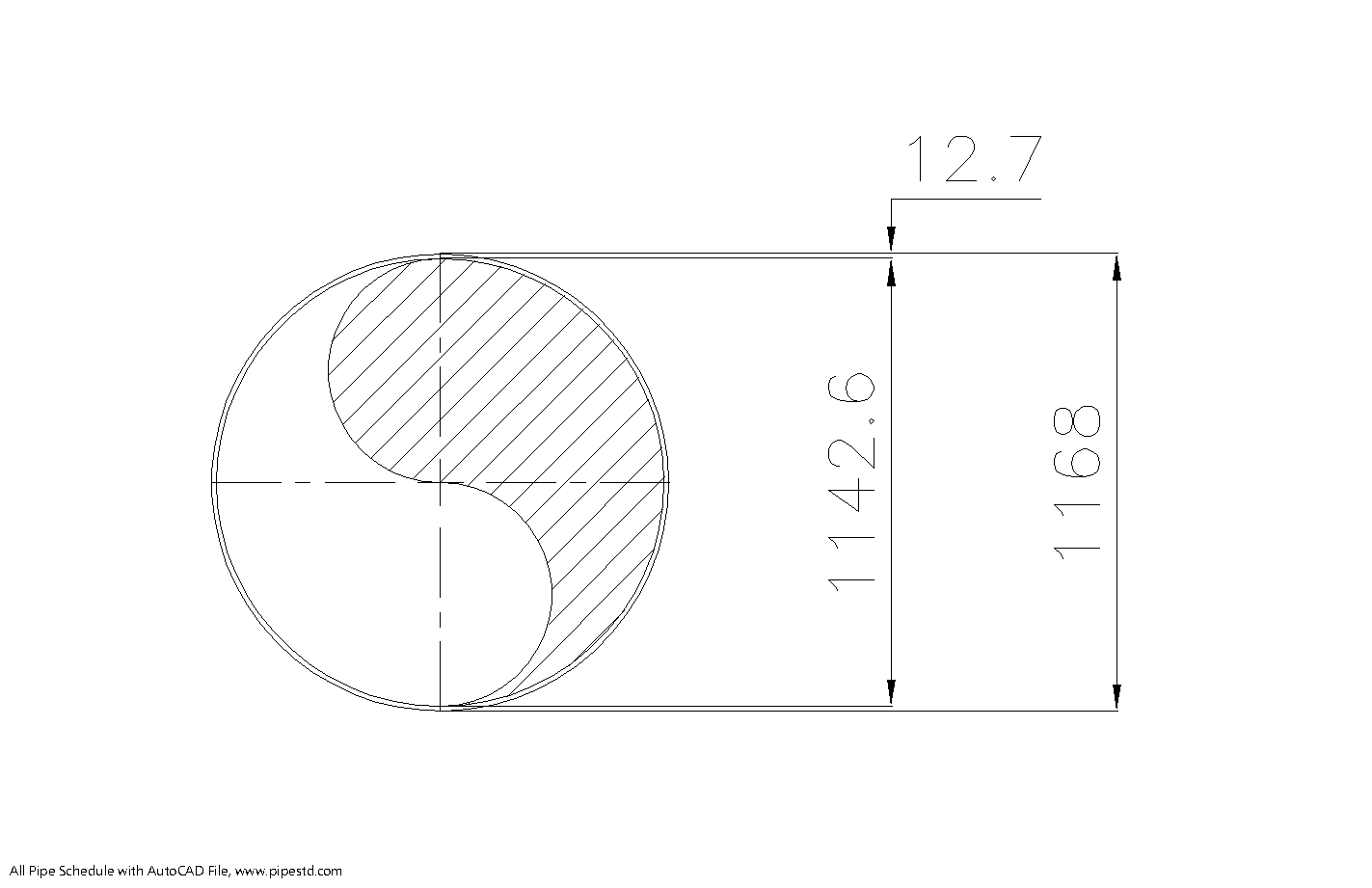

Schedule XS Pipe 46 Inch (DN1150 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 46 Inch – Size : DN1150 mm – Inside Dimeter(Pipe ID) : 1142.6 mm – Outside Dimeter(Pipe OD) : 1168 mm – Pipe Wall…

Schedule XS Pipe 44 Inch (DN1100 mm)

Schedule XS Pipe 44 Inch DN1100

Schedule XS Pipe 44 Inch (DN1100 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 44 Inch – Size : DN1100 mm – Inside Dimeter(Pipe ID) : 1092.6 mm – Outside Dimeter(Pipe OD) : 1118 mm – Pipe Wall…

Schedule XS Pipe 42 Inch (DN1050 mm)

Schedule XS Pipe 42 Inch DN1050

Schedule XS Pipe 42 Inch (DN1050 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 42 Inch – Size : DN1050 mm – Inside Dimeter(Pipe ID) : 1041.6 mm – Outside Dimeter(Pipe OD) : 1067 mm – Pipe Wall…

Schedule XS Pipe 40 Inch (DN1000 mm)

Schedule XS Pipe 40 Inch DN1000

Schedule XS Pipe 40 Inch (DN1000 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 40 Inch – Size : DN1000 mm – Inside Dimeter(Pipe ID) : 990.6 mm – Outside Dimeter(Pipe OD) : 1016 mm – Pipe Wall…

Schedule XS Pipe 38 Inch (DN950 mm)

Schedule XS Pipe 38 Inch DN950

Schedule XS Pipe 38 Inch (DN950 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 38 Inch – Size : DN950 mm – Inside Dimeter(Pipe ID) : 939.6 mm – Outside Dimeter(Pipe OD) : 965 mm – Pipe Wall…

Schedule XS Pipe 36 Inch (DN900 mm)

Schedule XS Pipe 36 Inch DN900

Schedule XS Pipe 36 Inch (DN900 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 36 Inch – Size : DN900 mm – Inside Dimeter(Pipe ID) : 888.6 mm – Outside Dimeter(Pipe OD) : 914 mm – Pipe Wall…

Schedule XS Pipe 34 Inch (DN850 mm)

Schedule XS Pipe 34 Inch DN850

Schedule XS Pipe 34 Inch (DN850 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 34 Inch – Size : DN850 mm – Inside Dimeter(Pipe ID) : 838.6 mm – Outside Dimeter(Pipe OD) : 864 mm – Pipe Wall…

Schedule XS Pipe 32 Inch (DN800 mm)

Schedule XS Pipe 32 Inch DN800

Schedule XS Pipe 32 Inch (DN800 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 32 Inch – Size : DN800 mm – Inside Dimeter(Pipe ID) : 787.6 mm – Outside Dimeter(Pipe OD) : 813 mm – Pipe Wall…

Schedule XS Pipe 30 Inch (DN750 mm)

Schedule XS Pipe 30 Inch DN750

Schedule XS Pipe 30 Inch (DN750 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 30 Inch – Size : DN750 mm – Inside Dimeter(Pipe ID) : 736.6 mm – Outside Dimeter(Pipe OD) : 762 mm – Pipe Wall…

Schedule XS Pipe 28 Inch (DN700 mm)

Schedule XS Pipe 28 Inch DN700

Schedule XS Pipe 28 Inch (DN700 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 28 Inch – Size : DN700 mm – Inside Dimeter(Pipe ID) : 685.6 mm – Outside Dimeter(Pipe OD) : 711 mm – Pipe Wall…

Schedule XS Pipe 26 Inch (DN650 mm)

Schedule XS Pipe 26 Inch DN650

Schedule XS Pipe 26 Inch (DN650 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 26 Inch – Size : DN650 mm – Inside Dimeter(Pipe ID) : 634.6 mm – Outside Dimeter(Pipe OD) : 660 mm – Pipe Wall…
