Schedule 40S Steel Pipe Dimensions Include Nominal pipe size(nps) , Diameter nominal(dn) , Inside Dimeter(ID) , Outside Dimeter(OD) , Pipe Wall Thickness and Pipe Weight Reference ANSI/ASME B36.19(Stainless Steel Pipe) Standard with AutoCAD File
Schedule 40S Pipe 24 Inch (DN600 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 24 Inch – Size : DN600 mm – Inside Dimeter(Pipe ID) : 590.94 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 20 Inch (DN500 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 20 Inch – Size : DN500 mm – Inside Dimeter(Pipe ID) : 488.94 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 18 Inch (DN450 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 18 Inch – Size : DN450 mm – Inside Dimeter(Pipe ID) : 437.94 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 16 Inch (DN400 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 16 Inch – Size : DN400 mm – Inside Dimeter(Pipe ID) : 387.34 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 14 Inch (DN350 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 14 Inch – Size : DN350 mm – Inside Dimeter(Pipe ID) : 336.54 mm – Outside Dimeter(Pipe OD) …

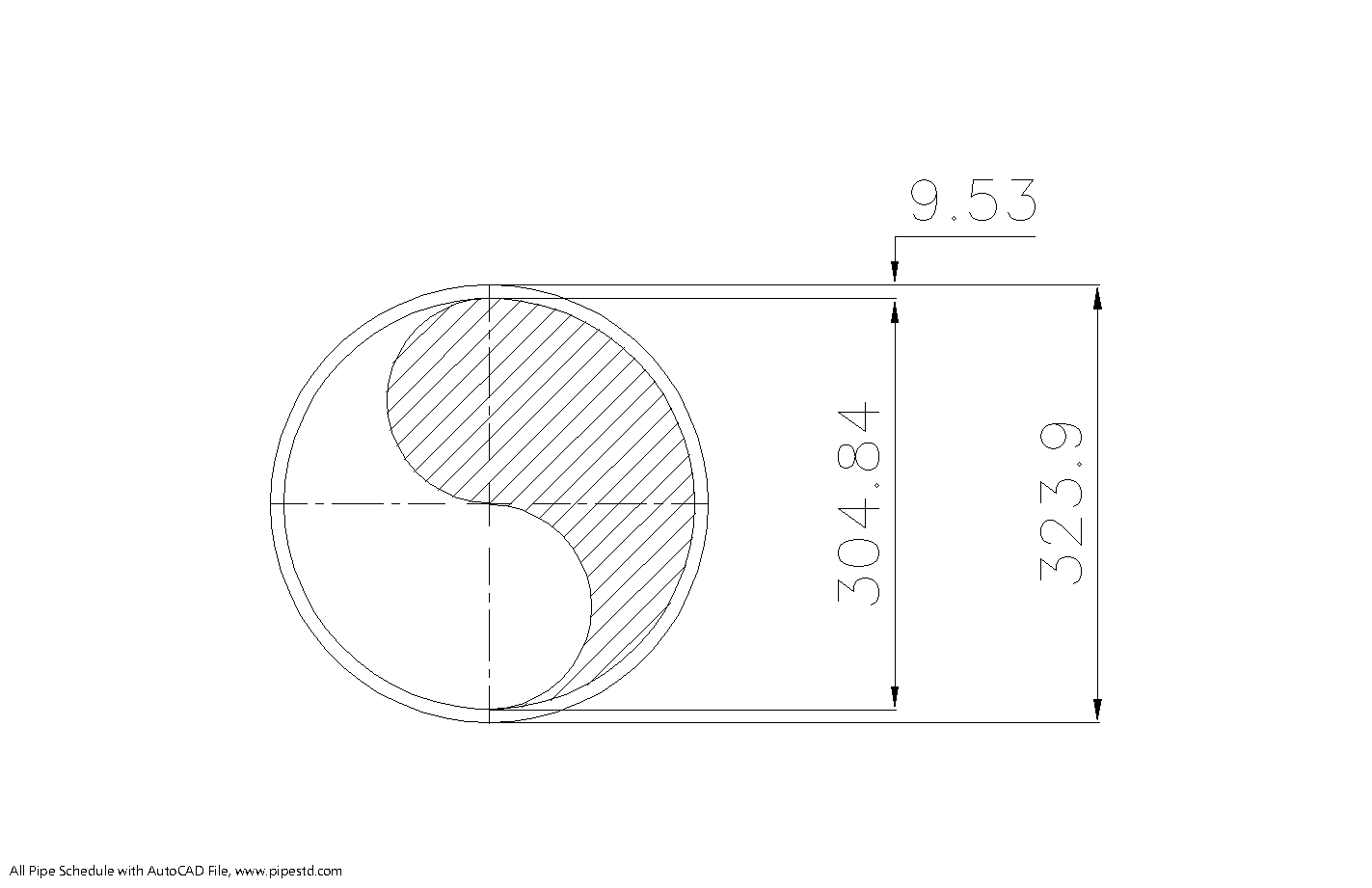

Schedule 40S Pipe 12 Inch (DN300 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 12 Inch – Size : DN300 mm – Inside Dimeter(Pipe ID) : 304.84 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 10 Inch (DN250 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 10 Inch – Size : DN250 mm – Inside Dimeter(Pipe ID) : 254.56 mm – Outside Dimeter(Pipe OD) …
Schedule 40S Pipe 8 Inch (DN200 mm) Standard : ANSI/ASME B36.19(Stainless Steel Pipe) – Size : NPS 8 Inch – Size : DN200 mm – Inside Dimeter(Pipe ID) : 202.74 mm – Outside Dimeter(Pipe OD) …
