Schedule 40 Steel Pipe Dimensions Include Nominal pipe size(nps) , Diameter nominal(dn) , Inside Dimeter(ID) , Outside Dimeter(OD) , Pipe Wall Thickness and Pipe Weight Reference ANSI/ASME B36.10(Steel Pipe) Standard with AutoCAD File

Schedule 40 Pipe 36 Inch (DN900 mm)

Schedule 40 Pipe 36 Inch DN900

Schedule 40 Pipe 36 Inch (DN900 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 36 Inch – Size : DN900 mm – Inside Dimeter(Pipe ID) : 875.9 mm – Outside Dimeter(Pipe OD) : 914 mm – Pipe Wall…

Schedule 40 Pipe 34 Inch (DN850 mm)

Schedule 40 Pipe 34 Inch DN850

Schedule 40 Pipe 34 Inch (DN850 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 34 Inch – Size : DN850 mm – Inside Dimeter(Pipe ID) : 829.04 mm – Outside Dimeter(Pipe OD) : 864 mm – Pipe Wall…

Schedule 40 Pipe 32 Inch (DN800 mm)

Schedule 40 Pipe 32 Inch DN800

Schedule 40 Pipe 32 Inch (DN800 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 32 Inch – Size : DN800 mm – Inside Dimeter(Pipe ID) : 778.04 mm – Outside Dimeter(Pipe OD) : 813 mm – Pipe Wall…

Schedule 40 Pipe 24 Inch (DN600 mm)

Schedule 40 Pipe 24 Inch DN600

Schedule 40 Pipe 24 Inch (DN600 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 24 Inch – Size : DN600 mm – Inside Dimeter(Pipe ID) : 575.04 mm – Outside Dimeter(Pipe OD) : 610 mm – Pipe Wall…

Schedule 40 Pipe 20 Inch (DN500 mm)

Schedule 40 Pipe 20 Inch DN500

Schedule 40 Pipe 20 Inch (DN500 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 20 Inch – Size : DN500 mm – Inside Dimeter(Pipe ID) : 477.82 mm – Outside Dimeter(Pipe OD) : 508 mm – Pipe Wall…

Schedule 40 Pipe 18 Inch (DN450 mm)

Schedule 40 Pipe 18 Inch DN450

Schedule 40 Pipe 18 Inch (DN450 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 18 Inch – Size : DN450 mm – Inside Dimeter(Pipe ID) : 428.46 mm – Outside Dimeter(Pipe OD) : 457 mm – Pipe Wall…

Schedule 40 Pipe 16 Inch (DN400 mm)

Schedule 40 Pipe 16 Inch DN400

Schedule 40 Pipe 16 Inch (DN400 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 16 Inch – Size : DN400 mm – Inside Dimeter(Pipe ID) : 381 mm – Outside Dimeter(Pipe OD) : 406.4 mm – Pipe Wall…

Schedule 40 Pipe 14 Inch (DN350 mm)

Schedule 40 Pipe 14 Inch DN350

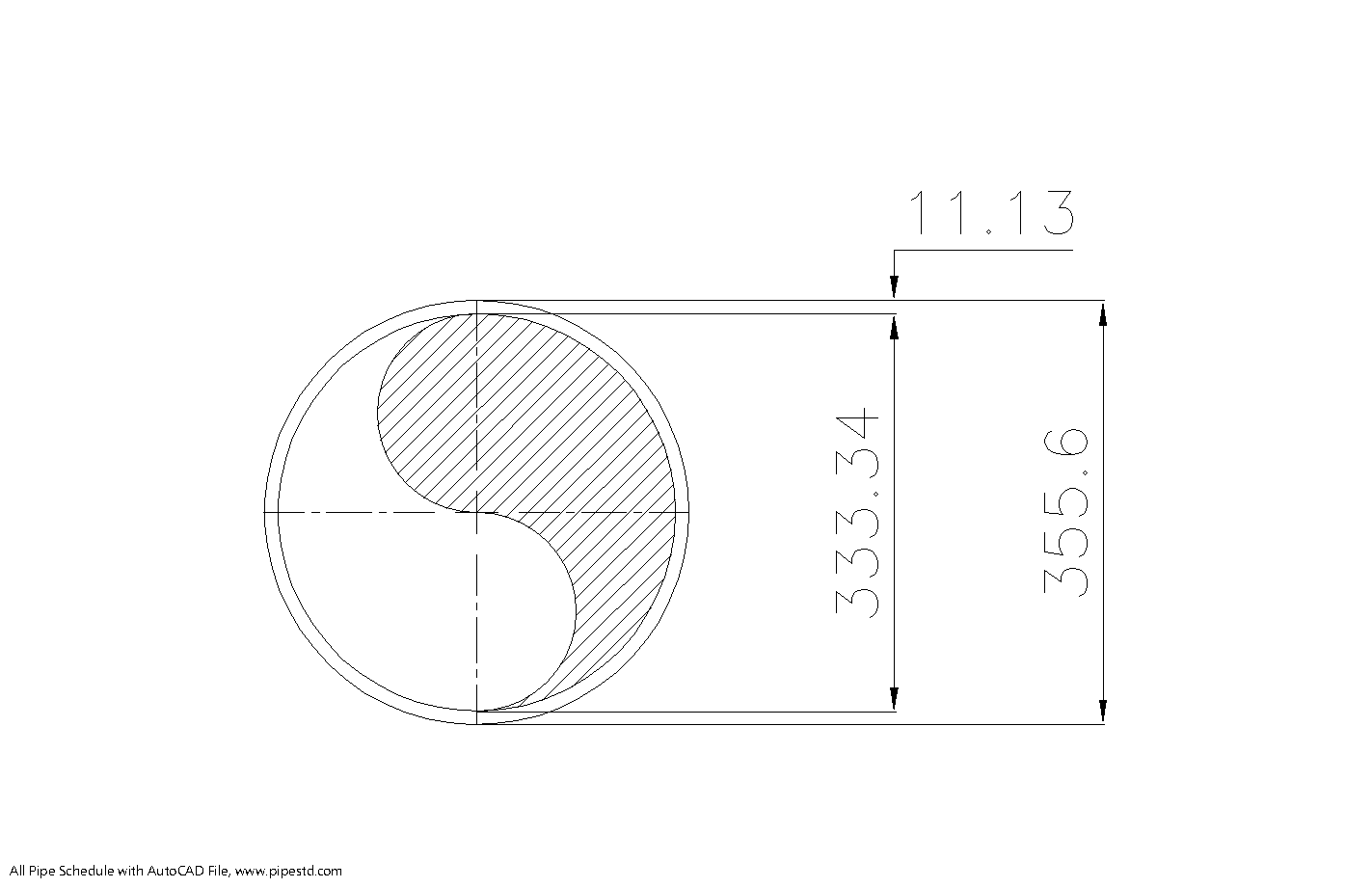

Schedule 40 Pipe 14 Inch (DN350 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 14 Inch – Size : DN350 mm – Inside Dimeter(Pipe ID) : 333.34 mm – Outside Dimeter(Pipe OD) : 355.6 mm – Pipe Wall…

Schedule 40 Pipe 12 Inch (DN300 mm)

Schedule 40 Pipe 12 Inch DN300

Schedule 40 Pipe 12 Inch (DN300 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 12 Inch – Size : DN300 mm – Inside Dimeter(Pipe ID) : 303.18 mm – Outside Dimeter(Pipe OD) : 323.9 mm – Pipe Wall…

Schedule 40 Pipe 10 Inch (DN250 mm)

Schedule 40 Pipe 10 Inch DN250

Schedule 40 Pipe 10 Inch (DN250 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 10 Inch – Size : DN250 mm – Inside Dimeter(Pipe ID) : 254.46 mm – Outside Dimeter(Pipe OD) : 273.1 mm – Pipe Wall…

Schedule 40 Pipe 8 Inch (DN200 mm)

Schedule 40 Pipe 8 Inch DN200

Schedule 40 Pipe 8 Inch (DN200 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 8 Inch – Size : DN200 mm – Inside Dimeter(Pipe ID) : 202.74 mm – Outside Dimeter(Pipe OD) : 219.1 mm – Pipe Wall…

Schedule 40 Pipe 6 Inch (DN150 mm)

Schedule 40 Pipe 6 Inch DN150

Schedule 40 Pipe 6 Inch (DN150 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 6 Inch – Size : DN150 mm – Inside Dimeter(Pipe ID) : 154.08 mm – Outside Dimeter(Pipe OD) : 168.3 mm – Pipe Wall…
