Schedule 140 Steel Pipe Dimensions Include Nominal pipe size(nps) , Diameter nominal(dn) , Inside Dimeter(ID) , Outside Dimeter(OD) , Pipe Wall Thickness and Pipe Weight Reference ANSI/ASME B36.10(Steel Pipe) Standard with AutoCAD File

Schedule 140 Pipe 24 Inch (DN600 mm)

Schedule 140 Pipe 24 Inch DN600

Schedule 140 Pipe 24 Inch (DN600 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 24 Inch – Size : DN600 mm – Inside Dimeter(Pipe ID) : 505.26 mm – Outside Dimeter(Pipe OD) : 610 mm – Pipe Wall…

Schedule 140 Pipe 22 Inch (DN550 mm)

Schedule 140 Pipe 22 Inch DN550

Schedule 140 Pipe 22 Inch (DN550 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 22 Inch – Size : DN550 mm – Inside Dimeter(Pipe ID) : 463.74 mm – Outside Dimeter(Pipe OD) : 559 mm – Pipe Wall…

Schedule 140 Pipe 20 Inch (DN500 mm)

Schedule 140 Pipe 20 Inch DN500

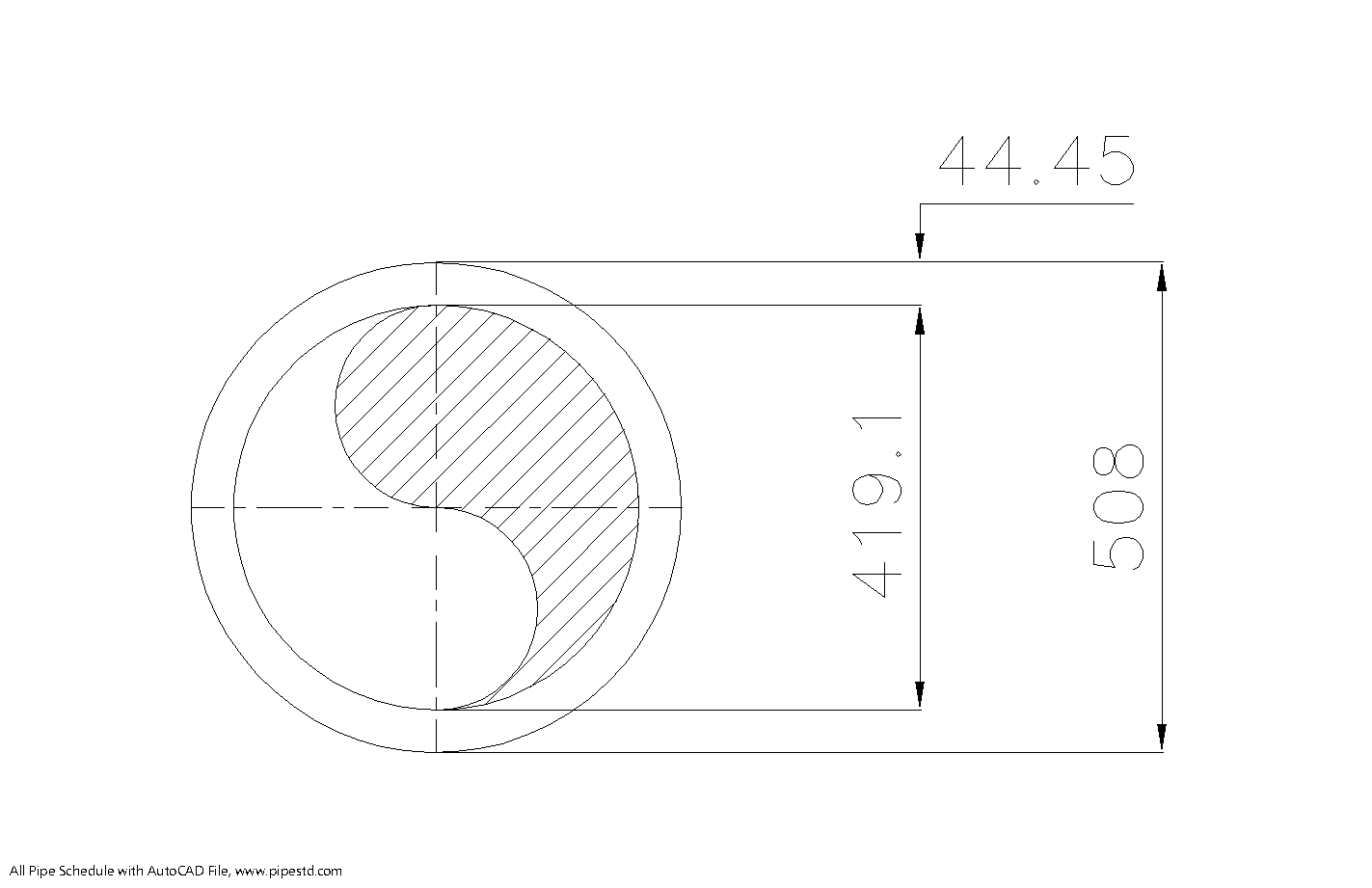

Schedule 140 Pipe 20 Inch (DN500 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 20 Inch – Size : DN500 mm – Inside Dimeter(Pipe ID) : 419.1 mm – Outside Dimeter(Pipe OD) : 508 mm – Pipe Wall…

Schedule 140 Pipe 18 Inch (DN450 mm)

Schedule 140 Pipe 18 Inch DN450

Schedule 140 Pipe 18 Inch (DN450 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 18 Inch – Size : DN450 mm – Inside Dimeter(Pipe ID) : 377.66 mm – Outside Dimeter(Pipe OD) : 457 mm – Pipe Wall…

Schedule 140 Pipe 16 Inch (DN400 mm)

Schedule 140 Pipe 16 Inch DN400

Schedule 140 Pipe 16 Inch (DN400 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 16 Inch – Size : DN400 mm – Inside Dimeter(Pipe ID) : 333.34 mm – Outside Dimeter(Pipe OD) : 406.4 mm – Pipe Wall…

Schedule 140 Pipe 14 Inch (DN350 mm)

Schedule 140 Pipe 14 Inch DN350

Schedule 140 Pipe 14 Inch (DN350 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 14 Inch – Size : DN350 mm – Inside Dimeter(Pipe ID) : 292.1 mm – Outside Dimeter(Pipe OD) : 355.6 mm – Pipe Wall…

Schedule 140 Pipe 12 Inch (DN300 mm)

Schedule 140 Pipe 12 Inch DN300

Schedule 140 Pipe 12 Inch (DN300 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 12 Inch – Size : DN300 mm – Inside Dimeter(Pipe ID) : 266.64 mm – Outside Dimeter(Pipe OD) : 323.9 mm – Pipe Wall…

Schedule 140 Pipe 10 Inch (DN250 mm)

Schedule 140 Pipe 10 Inch DN250

Schedule 140 Pipe 10 Inch (DN250 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 10 Inch – Size : DN250 mm – Inside Dimeter(Pipe ID) : 222.2 mm – Outside Dimeter(Pipe OD) : 273.1 mm – Pipe Wall…

Schedule 140 Pipe 8 Inch (DN200 mm)

Schedule 140 Pipe 8 Inch DN200

Schedule 140 Pipe 8 Inch (DN200 mm) Standard : ANSI/ASME B36.10(Steel Pipe) – Size : NPS 8 Inch – Size : DN200 mm – Inside Dimeter(Pipe ID) : 177.86 mm – Outside Dimeter(Pipe OD) : 219.1 mm – Pipe Wall…
