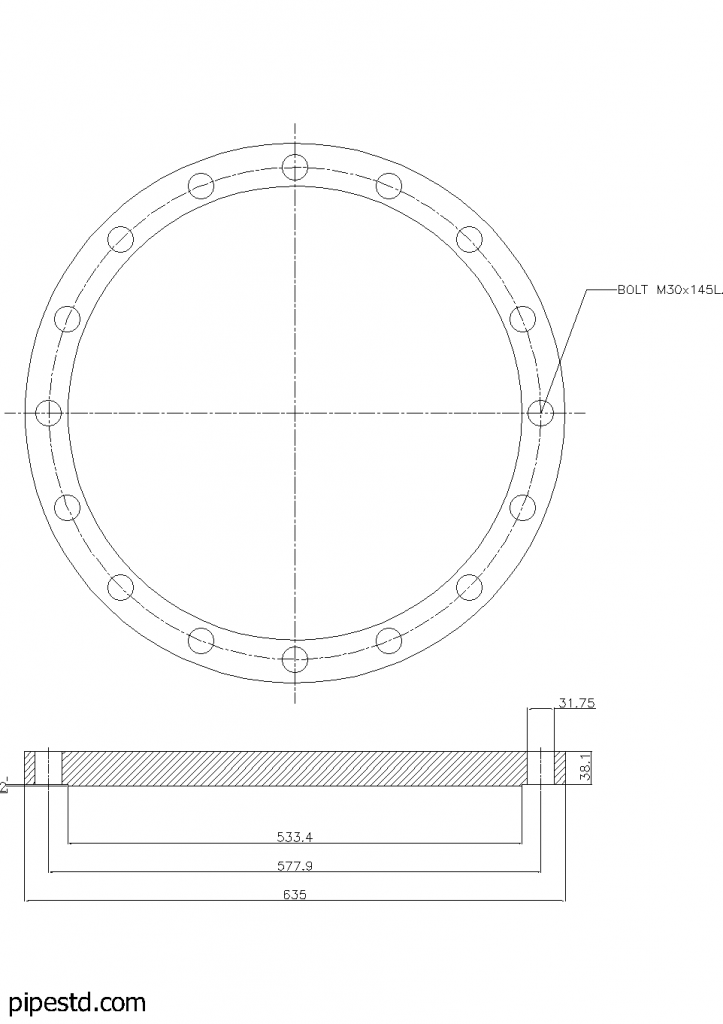

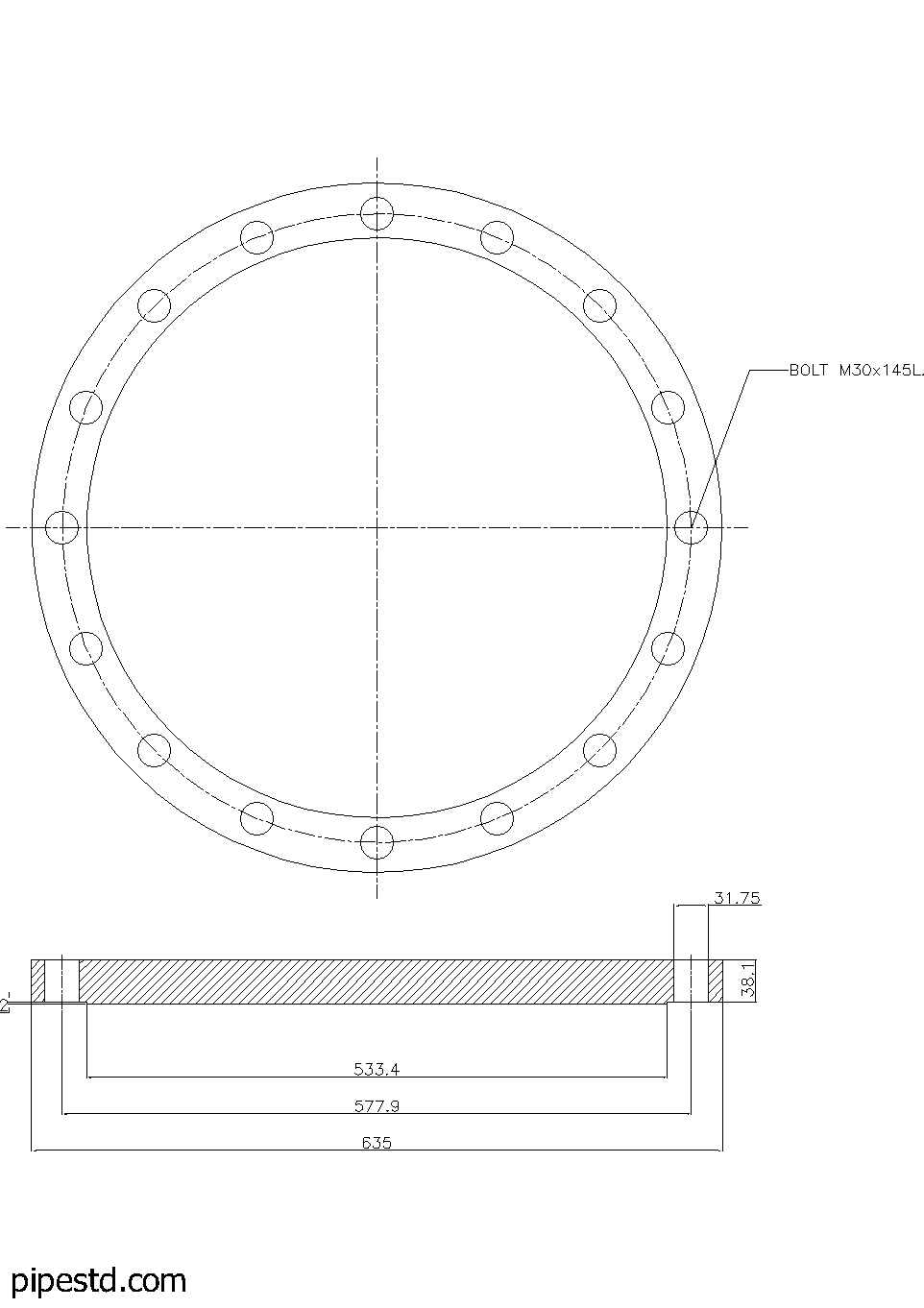

Blind Flange 18 Inch Class 150

blind flange Class 150
Reference : ANSI ASME B16.5 Flanges
Size NPS : 18″
Size DN : 450 mm.
Blind Flange Thickness : 35 mm.
Weight : 100 kg.
StudBolt
Size : 1 1/8″ UNC Or (M30) x 145 Long
No. of Bolts : 16 EA.
Holes Diamater : 31.75 mm.
